MR306 Mesh (MB)

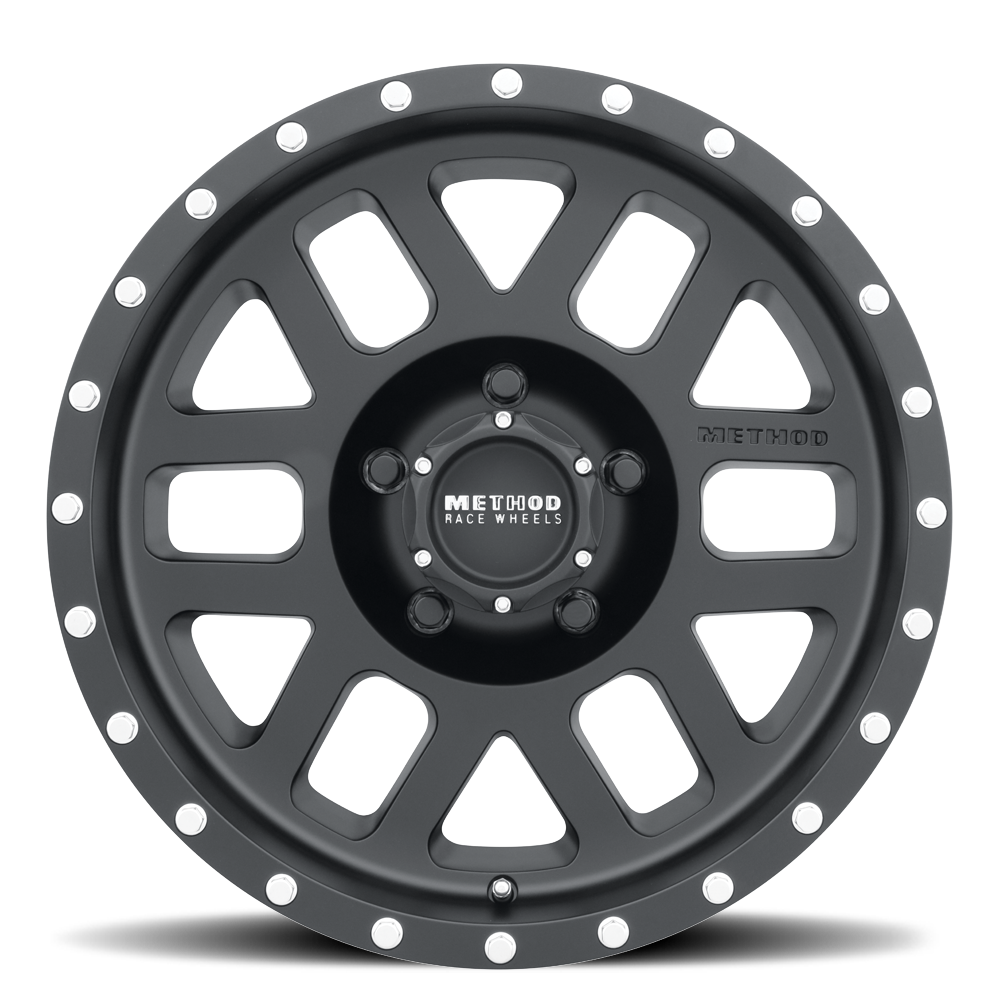

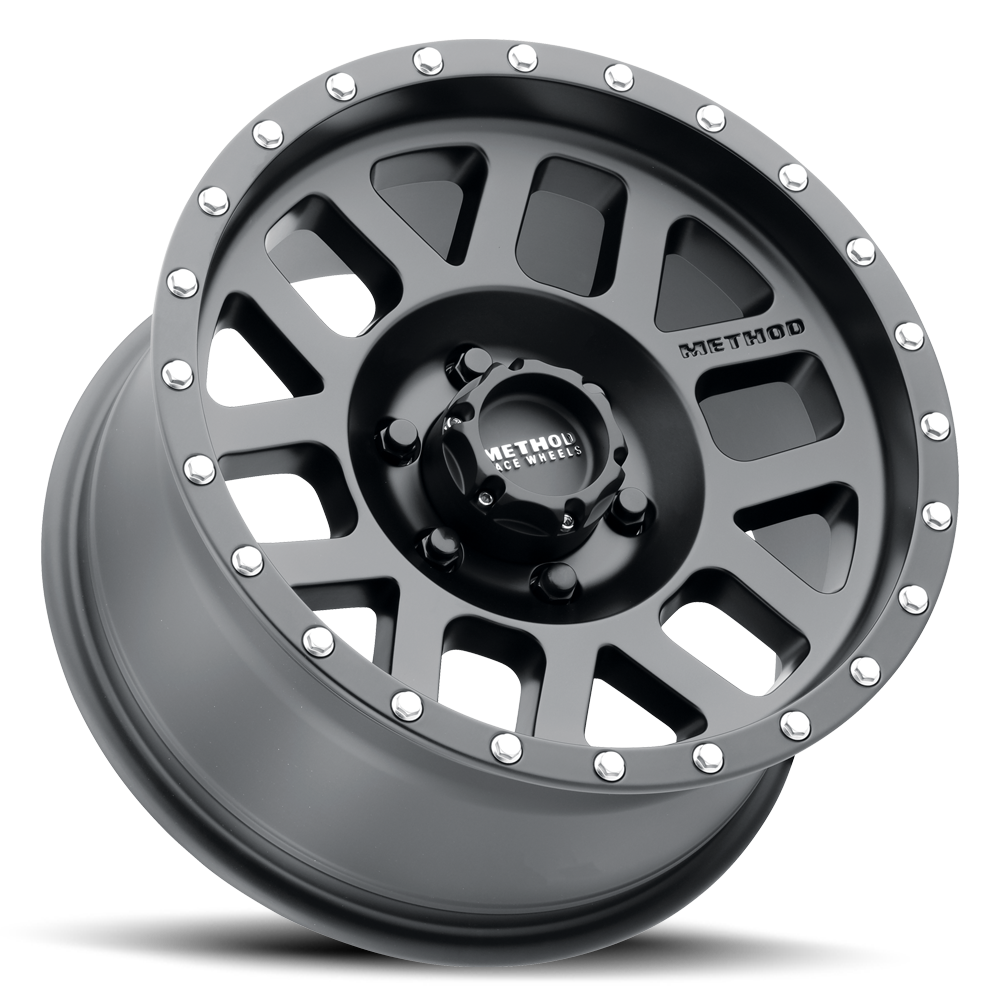

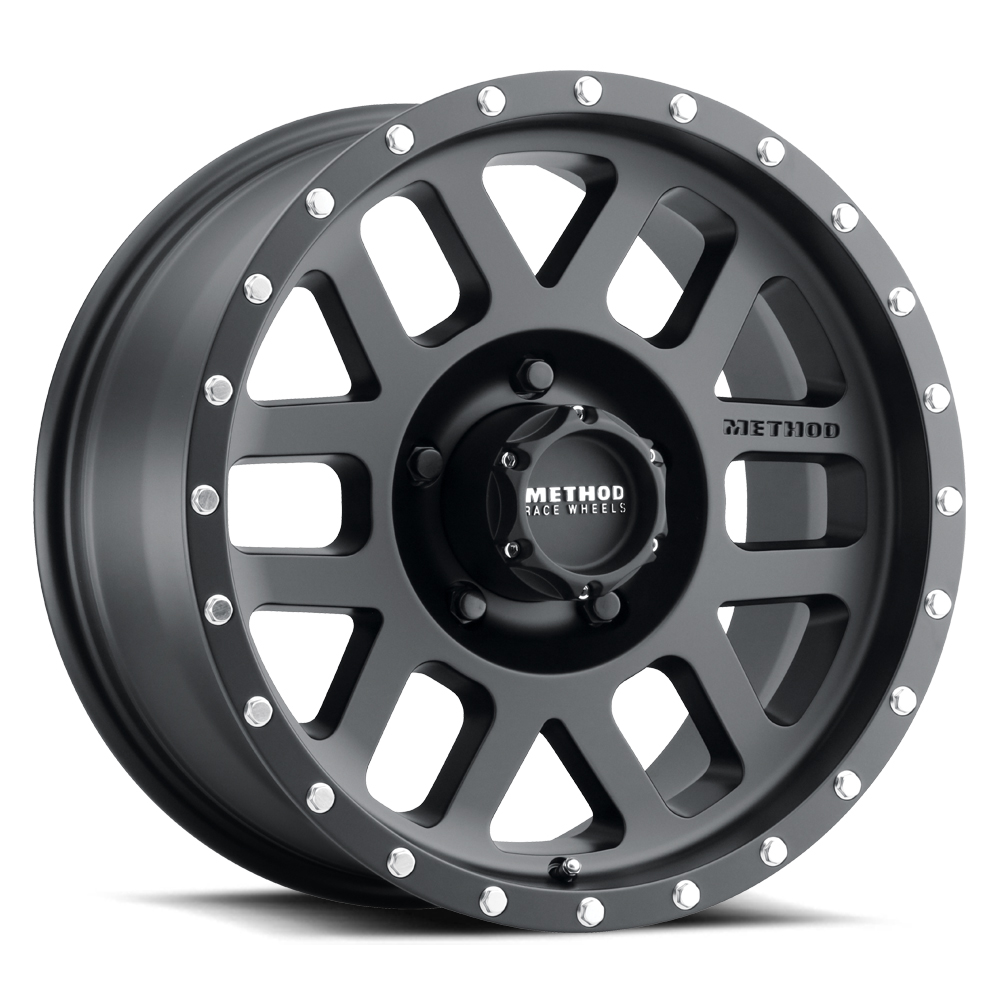

The 306 Mesh Wheel has a clean six windowed spoke design with a debossed Method logo. Replaceable lip bolts with several color options and flush center caps are available to customize your wheel. It boasts a strong 2,100-3,600 lbs. load rating.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- Clean 6 windowed spoke design with debossed METHOD logo
- Replaceable lip bolts with optional colors available
- Push through center cap with embossed METHOD logo
- Flush cap appearance options available
- Industry’s best lifetime structural warranty
- Strong 2100 lbs. to 3600 lbs. load ratings
Wheel Specs
Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
---|---|---|---|---|---|---|
MR30678512500 | 17 | 8.5 | 0 | 5x4.5 | 83 | Matte Black |
MR30678516500 | 17 | 8.5 | 0 | 6x135 | 94 | Matte Black |
MR30678550500 | 17 | 8.5 | 0 | 5x5 | 94 | Matte Black |
MR30678555500 | 17 | 8.5 | 0 | 5x5.5 | 108 | Matte Black |
MR30678560500 | 17 | 8.5 | 0 | 6x5.5 | 108 | Matte Black |
MR30689016518 | 18 | 9 | 18 | 6x135 | 94 | Matte Black |
MR30689050512N | 18 | 9 | -12 | 5x5 | 94 | Matte Black |
MR30689058518 | 18 | 9 | 18 | 5x150 | 116.5 | Matte Black |
MR30689060512N | 18 | 9 | -12 | 6x5.5 | 108 | Matte Black |
MR30689060518 | 18 | 9 | 18 | 6x5.5 | 108 | Matte Black |
MR30689080512N | 18 | 9 | -12 | 8x6.5 | 130.81 | Matte Black |
MR30689080518 | 18 | 9 | 18 | 8x6.5 | 130.81 | Matte Black |
MR30689087512N | 18 | 9 | -12 | 8x170 | 130.81 | Matte Black |
MR30689087518 | 18 | 9 | 18 | 8x170 | 130.81 | Matte Black |
