MR316 (GB)

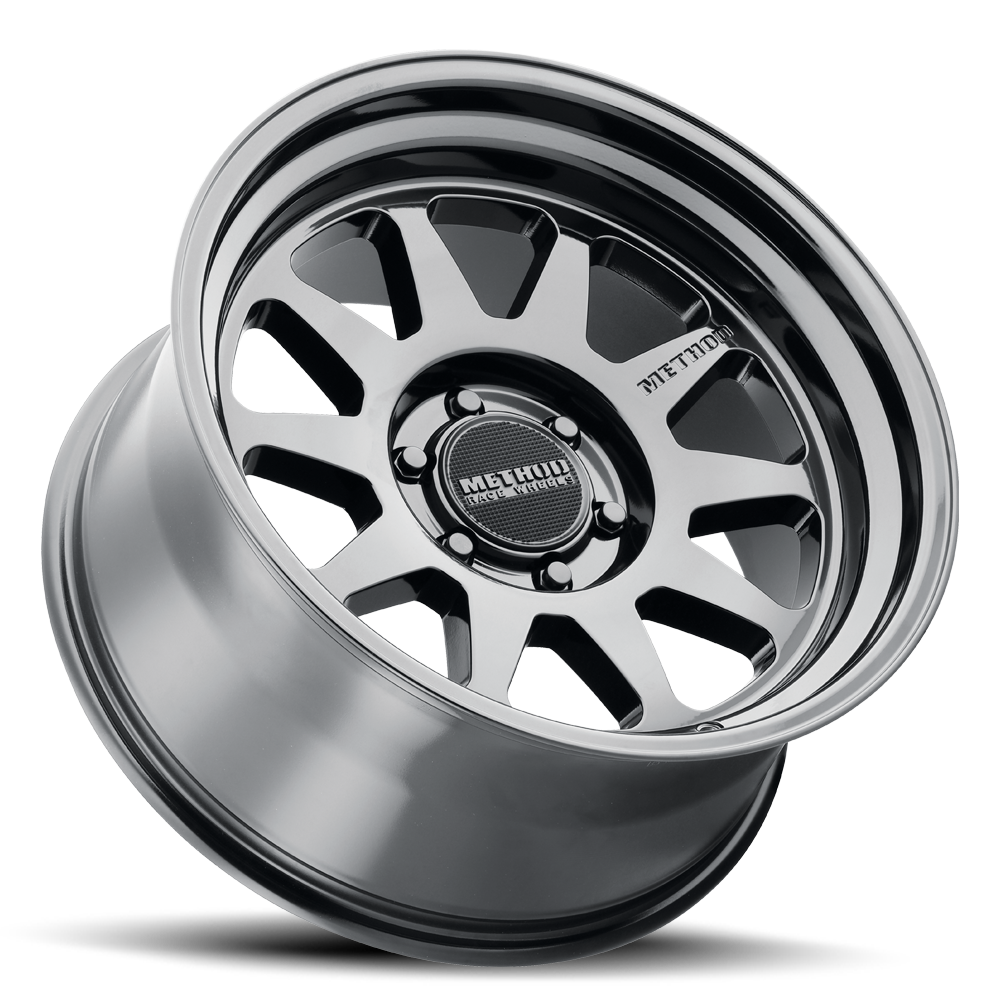

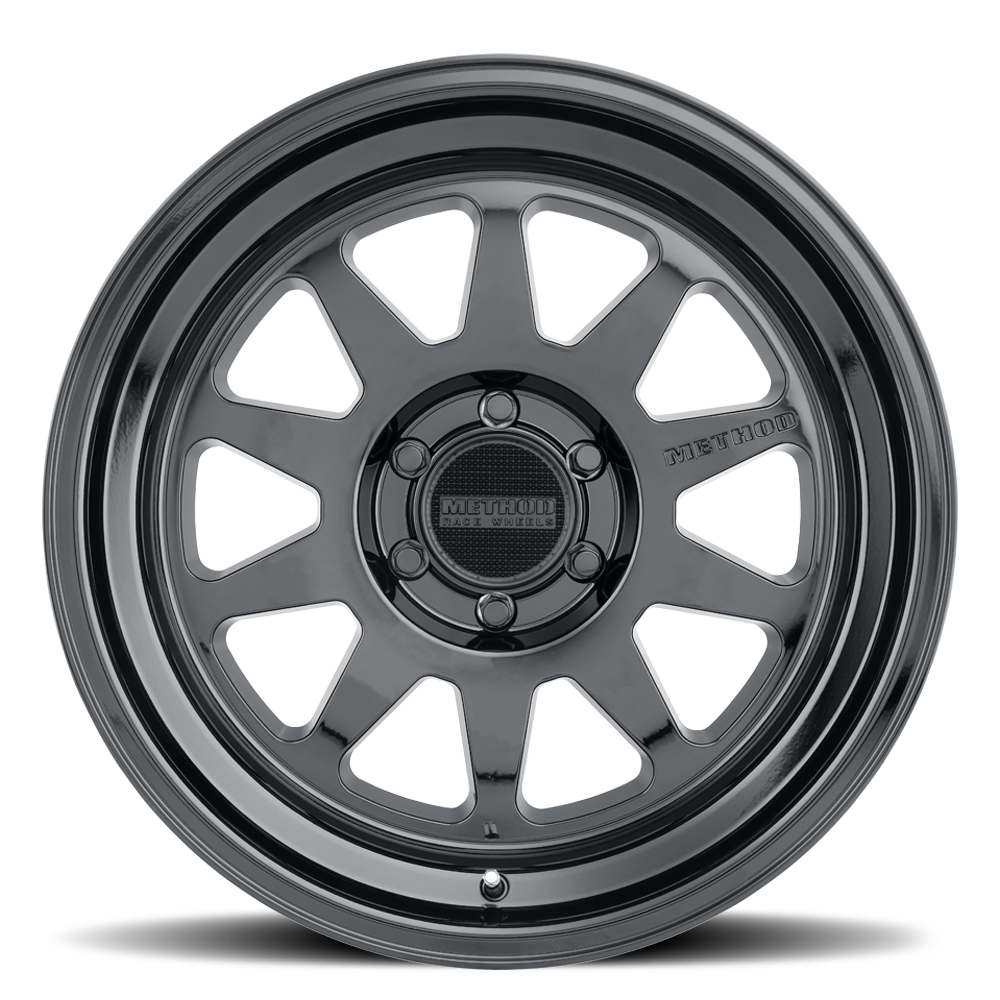

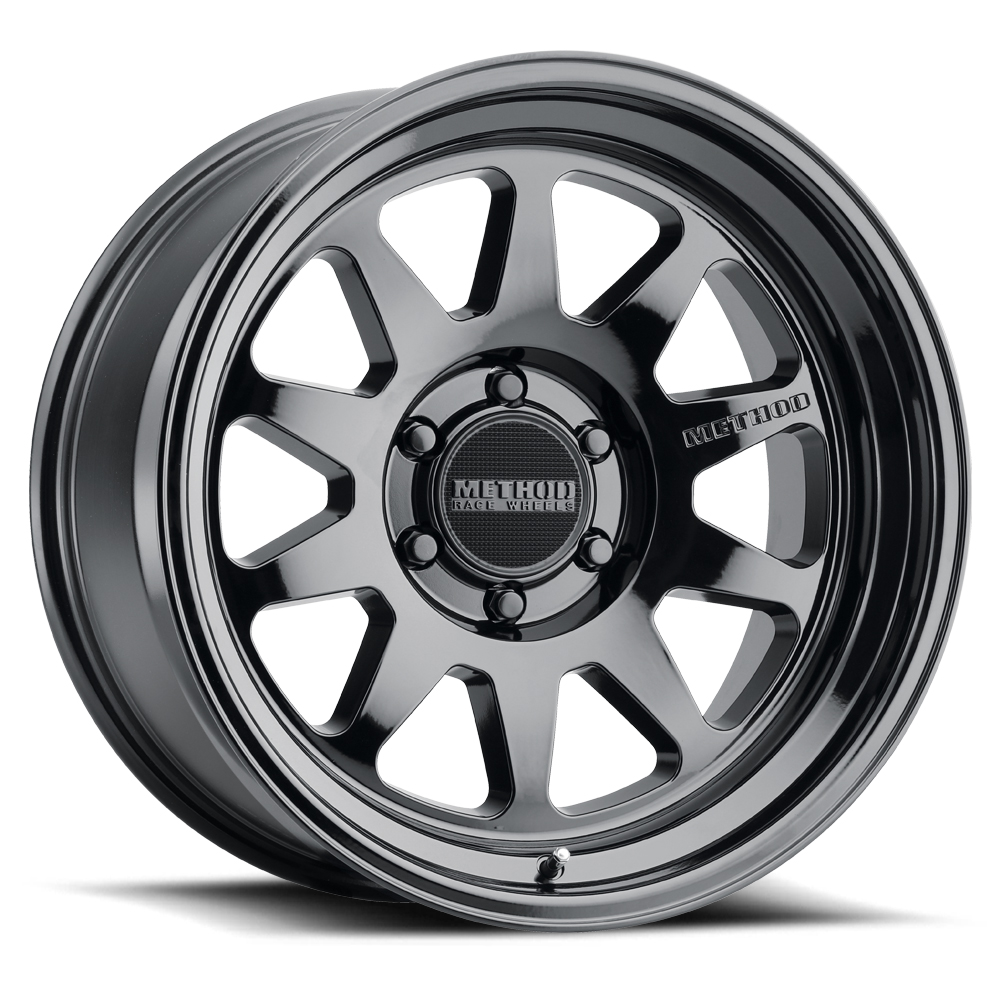

The 316 Standard Wheel in Gloss Black is exclusively available in a 20 inch size offering. Meeting the demands of those who want to update the look of their rig who already have 20 inch tires, the new gloss finish is sure to turn heads. It features a rugged 10 window design, flat snap on center cap, and debossed METHOD logo on one of the spokes. With a strong 2,650 lbs. load rating and a lower price point, this wheel offers the best bang for your buck.
DETAILS
- Solid A356 aluminum with T6 heat treatment construction
- 10 window design with debossed METHOD logo
- Snap in center cap with embossed METHOD logo
- Additional snap-in center caps available
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Strong 2650 lbs. load rating
Wheel Specs
Part Number | Diameter | Width | Offset (mm) | Bolt Pattern | Centre Bore | Finish |
---|---|---|---|---|---|---|
MR316290501318 | 20 | 9 | 18 | 5x5 | 71.5 | Gloss Black |
MR316290161318 | 20 | 9 | 18 | 6x135 | 87 | Gloss Black |
MR316290601318 | 20 | 9 | 18 | 6x5.5 | 106.25 | Gloss Black |
MR316290601300 | 20 | 9 | 0 | 6x5.5 | 106.25 | Gloss Black |
MR316210501318N | 20 | 10 | -18 | 5x5 | 71.5 | Gloss Black |
MR316210161318N | 20 | 10 | -18 | 6x135 | 87 | Gloss Black |
MR316210601318N | 20 | 10 | -18 | 6x5.5 | 106.25 | Gloss Black |
MR31678050825 | 17 | 8 | 25 | 5x5 | 71.5 | Gloss Titanium |
MR31678058825 | 17 | 8 | 25 | 5x150 | 110.5 | Gloss Titanium |
MR31678062825 | 17 | 8 | 25 | 6x120 | 67 | Gloss Titanium |
MR31678016825 | 17 | 8 | 25 | 6x135 | 87 | Gloss Titanium |
MR31678060825 | 17 | 8 | 25 | 6x5.5 | 106.25 | Gloss Titanium |
MR31678550800 | 17 | 8.5 | 0 | 5x5 | 71.5 | Gloss Titanium |
MR31678558800 | 17 | 8.5 | 0 | 5x150 | 110.5 | Gloss Titanium |
MR31678516800 | 17 | 8.5 | 0 | 6x135 | 87 | Gloss Titanium |
MR31678560800 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Gloss Titanium |
MR31689058818 | 18 | 9 | 18 | 5x150 | 110.5 | Gloss Titanium |
MR31689016818 | 18 | 9 | 18 | 6x135 | 87 | Gloss Titanium |
MR31689060818 | 18 | 9 | 18 | 6x5.5 | 106.25 | Gloss Titanium |
MR31629050818 | 20 | 9 | 18 | 5x5 | 71.5 | Gloss Titanium |
MR31629016818 | 20 | 9 | 18 | 6x135 | 87 | Gloss Titanium |
MR31629060818 | 20 | 9 | 18 | 6x5.5 | 106.25 | Gloss Titanium |
MR31629060800 | 20 | 9 | 0 | 6x5.5 | 106.25 | Gloss Titanium |
MR31621050818N | 20 | 10 | -18 | 5x5 | 71.5 | Gloss Titanium |
MR31621016818N | 20 | 10 | -18 | 6x135 | 87 | Gloss Titanium |
MR31621060818N | 20 | 10 | -18 | 6x5.5 | 106.25 | Gloss Titanium |
MR31678050525 | 17 | 8 | 25 | 5x5 | 71.5 | Matte Black |
MR31678058525 | 17 | 8 | 25 | 5x150 | 110.5 | Matte Black |
MR31678062525 | 17 | 8 | 25 | 6x120 | 67 | Matte Black |
MR31678016525 | 17 | 8 | 25 | 6x135 | 87 | Matte Black |
MR31678060525 | 17 | 8 | 25 | 6x5.5 | 106.25 | Matte Black |
MR31678550500 | 17 | 8.5 | 0 | 5x5 | 71.5 | Matte Black |
MR31678558500 | 17 | 8.5 | 0 | 5x150 | 110.5 | Matte Black |
MR31678562500 | 17 | 8.5 | 0 | 6x120 | 67 | Matte Black |
MR31678516500 | 17 | 8.5 | 0 | 6x135 | 87 | Matte Black |
MR31678560500 | 17 | 8.5 | 0 | 6x5.5 | 106.25 | Matte Black |
MR31689058518 | 18 | 9 | 18 | 5x150 | 110.5 | Matte Black |
MR31689016518 | 18 | 9 | 18 | 6x135 | 87 | Matte Black |
MR31689060518 | 18 | 9 | 18 | 6x5.5 | 106.25 | Matte Black |
